Exploring the VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor

Exploring the VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor

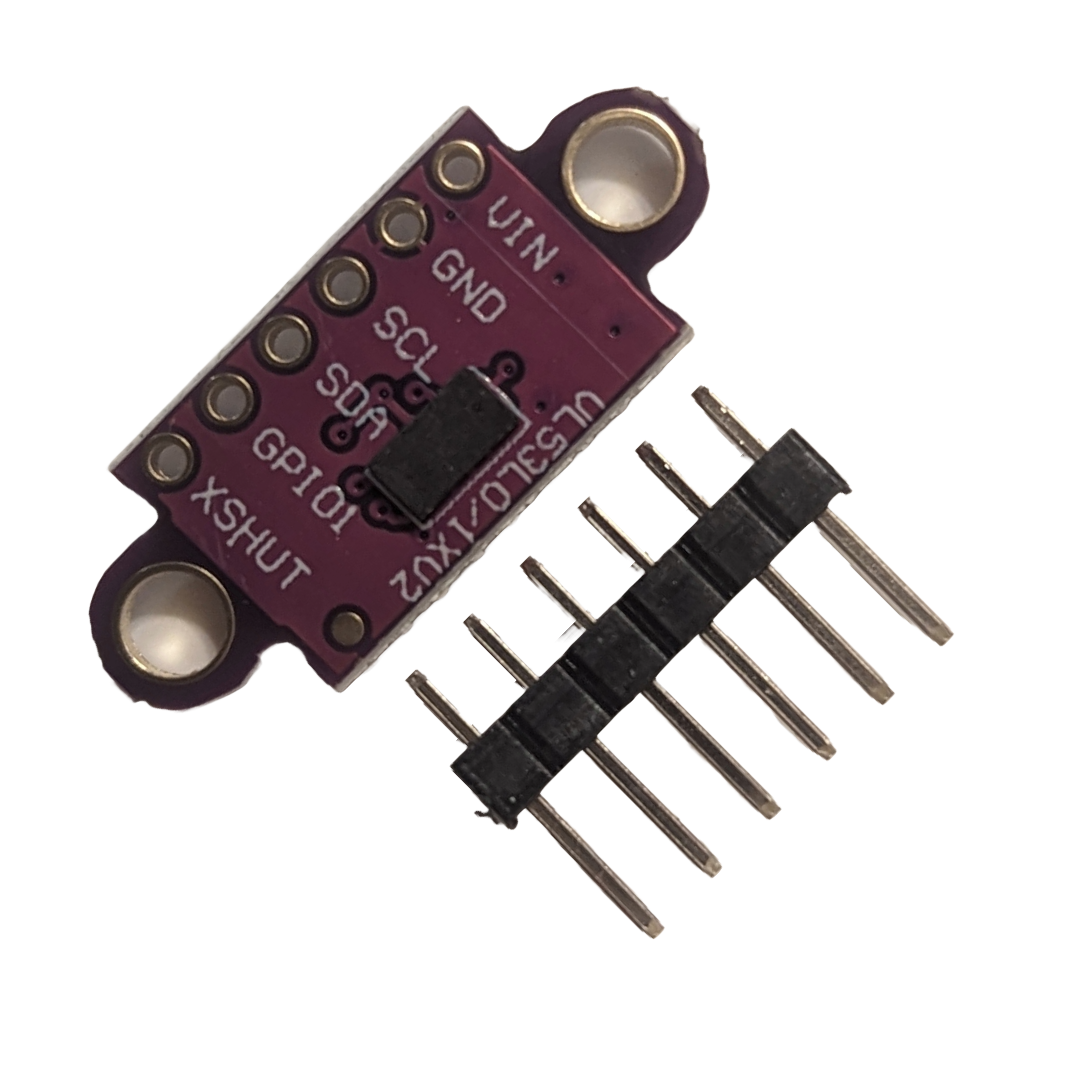

The VL53L0X Time-of-Flight (ToF) sensor is a powerful and compact solution for precise distance measurement. Using advanced laser technology, this sensor calculates the time it takes for a light pulse to reflect off a surface, offering exceptional accuracy for robotics, IoT applications, and smart devices. Whether you're working on autonomous robots, proximity sensors, or touchless interactions, the VL53L0X is an ideal choice.

Key Technical Specifications

  • Measurement Range:

    • 30 mm to 1.2 meters under most conditions
    • Up to 2 meters with highly reflective targets

  • Accuracy:

    • Typically ranges from ±3% to ±12% depending on surface reflectivity and ambient light conditions

  • Operating Voltage:

    • Works reliably with 2.8V to 5V, making it suitable for a wide range of microcontrollers, such as Arduino, Raspberry Pi, and STM32

  • Communication Protocol:

    • Uses the I²C interface for simple and fast communication with other components

  • Size:

    • Compact form factor at 21 mm x 18 mm x 2.8 mm and weighs only 1.3 grams, making it easy to integrate into small projects

  • Refresh Rate:

    • Capable of up to 50 Hz, ideal for applications that require real-time response

Why Choose the VL53L0X Sensor?

  1. High Precision
    The VL53L0X offers reliable measurements even in challenging environments with bright ambient light or reflective surfaces, outperforming many infrared and ultrasonic sensors.

  2. Energy Efficiency
    Its low power consumption makes it ideal for battery-operated projects and IoT devices. It’s also designed to comply with RoHS standards for environmental safety.

  3. Ease of Integration
    The I²C interface ensures smooth communication with multiple microcontrollers, and its small size means it can fit into the tightest of spaces without adding unnecessary weight.

  4. Minimal Interference
    Unlike ultrasonic sensors, which may suffer from cross-signal interference, the VL53L0X’s laser beam is narrow and precise. This makes it perfect for robotics and other applications requiring obstacle detection in confined spaces.

Applications for the VL53L0X

  • Autonomous Robots: Use the sensor to detect obstacles and navigate complex environments smoothly.
  • Proximity Sensors: Ideal for automatic doors, touchless lighting systems, or faucets.
  • DIY Rangefinders: Create custom measurement tools for workshops and manufacturing processes.
  • Smart Devices and IoT Projects: Monitor distances for security systems or interactive installations.

Getting Started with the VL53L0X

The VL53L0X is beginner-friendly and compatible with popular microcontroller platforms like Arduino and Raspberry Pi. Libraries and example codes make it easy to start prototyping, allowing you to focus on building creative projects without worrying about complex setup processes.

If you're ready to explore the potential of this powerful sensor, check out more details or purchase the VL53L0X Time-of-Flight Sensor here.

Conclusion

The VL53L0X ToF laser sensor stands out for its precision, compact size, and versatility. Whether you're building a robot, adding smart features to a project, or experimenting with touchless technology, this sensor delivers reliable performance. With its high refresh rate, energy efficiency, and ease of integration, the VL53L0X opens up endless possibilities for makers and professionals alike.

Ready to start building? Get your VL53L0X module here and unleash your creativity today!
