The TP4056 Module: The Ultimate Charger for DIY Enthusiasts

If you're diving into the world of DIY electronics or tinkering with lithium batteries, chances are you've come across the TP4056 module. Whether you're working on a portable project or just need an efficient charging solution, the TP4056 is a small but mighty tool. But what exactly is this module, how does it work, and why should you use it? Let’s break it down.

What is the TP4056 Charging Module?

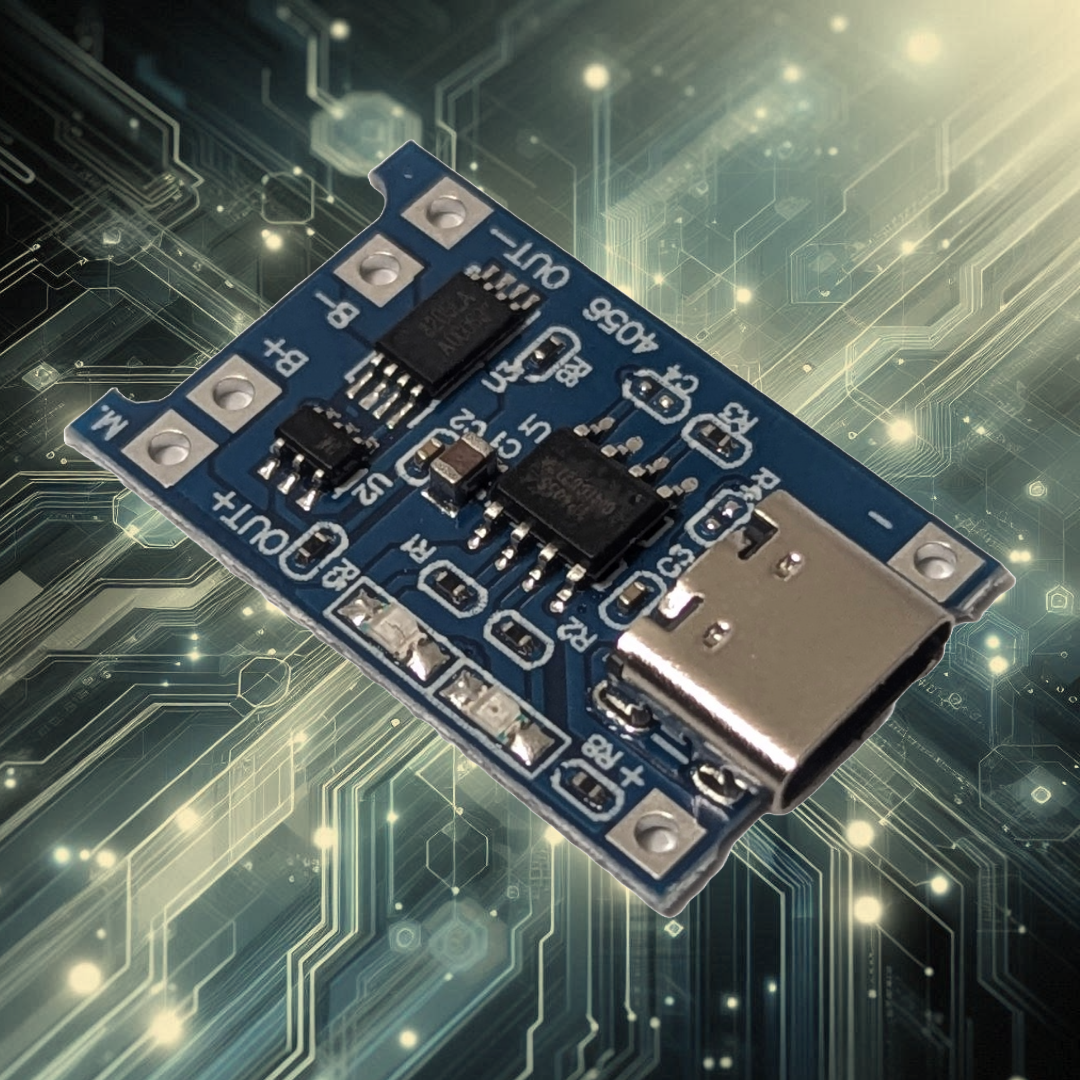

The TP4056 is a lithium-ion battery charger module that’s widely used to charge single-cell lithium-ion or lithium-polymer (LiPo) batteries. It’s based on the TP4056 IC, which controls the charging process to ensure the battery is charged safely and efficiently.

This module is super compact, often found in small DIY electronics projects, portable power banks, RC toys, and even 3D printing applications (which is especially useful if you’re into tinkering with tech!). It’s designed to provide constant current and constant voltage (CC/CV) charging and has built-in safety features, such as overvoltage, overcurrent, and temperature protection.

In short, the TP4056 is your go-to for making sure your Li-ion or LiPo battery gets juiced up without any unnecessary risks.

Key Features:

  • Input voltage: 4.5V-5.5V (perfect for USB charging)
  • Charging current: Typically up to 1A (adjustable with resistors)
  • Battery protection (overcharge, short circuit, temperature)
  • Micro-USB input or solder points for other power sources
  • Status LEDs (one for charging, one for full charge)

How Does the TP4056 Work?

The TP4056 module uses the constant current/constant voltage (CC/CV) charging method, which is ideal for lithium-ion and lithium-polymer batteries. Here's a quick breakdown of how it works:

  1. Constant Current (CC) Phase: When the battery is initially connected and has a low charge, the module pumps a constant current into the battery, typically around 1A. This is to quickly boost the charge.

  2. Constant Voltage (CV) Phase: As the battery nears full charge, the voltage reaches a preset level, usually 4.2V. The charging current then decreases gradually while the voltage remains constant. This ensures the battery isn't overcharged, which can be dangerous.

  3. Trickle Charge/Termination: Once the current drops to a safe, minimal level (around 10% of the set charging current), the module stops charging, and the battery is considered fully charged. You’ll see the status LED turn from red (charging) to blue (fully charged).

This two-phase charging method ensures maximum battery longevity and safety, keeping you from overcharging your cells, which could lead to battery damage, overheating, or worse.

Can TP4056 Charge LiPo?

Yes, the TP4056 module can charge LiPo (lithium polymer) batteries, as well as lithium-ion batteries. Both types operate at the same voltage levels (nominal voltage of 3.7V, max voltage of 4.2V), so the TP4056 is perfectly suited for charging them. Just make sure you're using a single-cell battery, as the module isn’t designed for multi-cell configurations.

When using LiPo batteries, ensure you’re following safety precautions. LiPos can be a bit temperamental—overcharging, discharging too much, or using the wrong charger could lead to dangerous situations (think explosions or fires!). That’s why using a proper charging module like the TP4056, which handles all those technical details, is crucial.

Reasons to Use the TP4056 Module

Now that we’ve covered what the TP4056 is and how it works, let's look at why you'd want to use it in your projects.

1. Cost-Effective

The TP4056 is super affordable, typically costing less than a couple of bucks. For the amount of functionality and safety it provides, it's a steal. Whether you're working on a low-budget project or mass-producing devices, the TP4056 is a cost-efficient solution.

2. Compact Design

Its small size makes it easy to integrate into portable electronics projects. Whether you’re building a custom power bank or a wearable gadget, the TP4056 doesn’t take up much real estate on your PCB.

3. Easy to Use

Even for beginners, the TP4056 is easy to work with. Most modules come with a micro-USB port for power input, so you can plug it directly into a standard phone charger or USB port. Plus, with its clear LED indicators, you’ll always know the charging status.

4. Safe and Reliable

The module’s built-in safety features make it much more reliable than just plugging a battery into any old charger. Overcharging a lithium battery can lead to overheating or even explosions, but the TP4056 module prevents that with automatic cutoffs and protection circuits.

5. Customizable Charging Current

By swapping out a resistor (Rprog) on the module, you can adjust the charging current to better suit your needs. If you need a slower, more conservative charge for smaller batteries, or a faster charge for larger ones, the TP4056 gives you that flexibility.

Conclusion

Whether you’re building an RC drone, making a custom flashlight, or just trying to create a portable power solution, the TP4056 is a versatile, reliable, and easy-to-use battery charging module. It’s perfect for charging Li-ion and LiPo batteries safely, ensuring that your projects don’t go up in flames (literally).

Its low cost, compact size, and range of features make it a favorite among hobbyists, makers, and professionals alike. Next time you need to charge a battery for your DIY electronics, give the TP4056 a try—you won’t be disappointed!

Technical Data Recap:

  • Input voltage: 4.5V - 5.5V
  • Charging voltage: 4.2V ±1%
  • Charging current: 1A max (adjustable)
  • Status LEDs: Red (charging), Blue (full)
  • Safety features: Overvoltage, overcurrent, overheat protection

Find this module and more here. Enjoy tinkering, and happy charging!
